Prisma
Overview

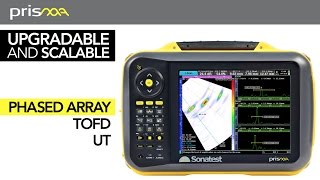

The prisma ultrasonic flaw detector offers the end user, outstanding performance in the field together with the flexibility and capability to step up from using a high-end ultrasonic flaw detector to an instrument with phased array functionality.
Ultrasonic NDT Solution Made Portable and Affordable
All models have TOFD capability on board, together with excellent reporting output.
Typical applications are broad but include Rail Testing, Weld inspection, Corrosion Mapping, Aerospace and Composite Testing.
Features
As simple as you want
- 30 second configuration
- No Delay - UT to PA - one button away
- Configuration and Calibration Wizards
- "Parameter Genius" giving you step by step assurance
- Minimise training due to the common user interface
- UT Studio+ provides fast & dynamic reporting
As capable as you need
- UT, TOFD & PA Inspection Modes
- Multi-mode validation of inspection
- Upgradeable anytime, anywhere!
- Unique cursors for precision measurement
- Recordability: screen shots, full data recording, fully traceable.
- Customisable imaging layout - 29 to choose from.
Resources
Remote NDT - Field Applications and User Cases
The remote control capabilities of instruments nowadays ease the development of new NDT applications, especially in harsh environments or restricted areas where it can be difficult to bring together measurement instrument and technician.
Manual Phased Array Corrosion Investigation using a Prisma
An easy-to-use solution to assess the remaining wall thickness of tubes, pipes and vessels.
Roller Probe Inspection
The through transmission inspection technique is a widely accepted method for honeycomb assessments.
Small Bore Welded Pipe – Single Sided Inspection
The Bracelet Scanner is designed specifically for circumferential welds in small bore pipework.
Shaft Inspection Using Phased-Array Compared to Other Techniques
The main purpose of this article is to suggest a new multi-orientated Phased Array (PA) inspection, which could reduce the cleaning and disassembly of shaft assembly in general.
Rail Bolt Hole Inspection
This application note highlights the use of phased array ultrasonics to reliably perform the bolt hole inspection in a more time efficient manner.
Friction Weld Inspection
This process is commonly used on cylindrical metal or thermoplastic components in aviation and automotive applications.
Technology Advancements for Remote NDT Applications
The remote control capabilities of instruments nowadays ease the development of new NDT applications, especially in harsh environments or restricted areas where it can be difficult to bring together measurement instrument and technician.
Helicopter TailBoom In-Service Inspection with PA
Following the issue of an information notice reporting cracks in the tail boom/fenestron junction frame, Eurocopter has released an Emergency Alert Service Bulletin (EASB) providing the corrective action to be taken.
Media
Tutorials to help you become a Pro
Tutorials to help you become a Pro.
Accessories
prisma UT Standard Kit
Dual UT Channels with:
- A-Scan Recording
- 2 Axis Encoding
- Interface Triggering (IFT)
- A, B and C-Scan Displays
- USB Stick (8Gb)
- User Manual
- Quick User Guide
- 2 Point Neck Harness
- Lithium-Ion Battery Pack
- Power Cord & Power Supply adaptor
- Screen Protector (Anti-Glare)
- Transport Case (Airplane Carry on size)
prisma UT/PA - 16/16 Standard Kit
Dual UT Channel kit
- A-Scan recording
- 2 Axis Encoding
- Interface Triggering (IFT)
- A, B and C Scan Displays
- USB Stick (8Gb)
- 16:16 Manual PA
- 2 Point Neck Harness
- Lithium-Ion Battery Pack
- Power Cord & Power Supply adaptor
- Screen Protector (Anti-Glare)
- Transport Case (Airplane Carry on size)
Software Options
| SW PRISMA PA 16:16 | - prisma Software 16:16 PA |
| SW PRISMA PA 16:64 | - prisma Software 16:64 PA |
| SW PRISMA TOFD | - prisma Software TOFD |
| UT-STUDIO PA | - UT Studio+ |
| Xpair | - Xpair Single License |
| PA-INTEGRATOR PACK | - CSV Software Option |
Accessories and Spares
| 195193 | - Carry Strap VEO/Prisma |
| 242171 | - Lithium Battery VEO/Prisma |
| 800424 | - 1 Bay Battery Charger |
| 800422 | - 2 Bay Battery Charger |
| 800423 | - VEO / Prisma Power Supply (LEMO) |
| 145513 | - prisma Window Protector |
| 195208 | - prisma Storm Case with Insert |
| 196100 | - Waterproof Mouse |
| 196101 | - Waterproof Keyboard |
Adapters
Click here for PA Adapter Specifications
| Adapters | Encoder & GPIO Adapters |
|
ADAP-003 |
ENC-ADAP- veo 2 axIs to prisma 2 axIs |
|
ADAP-001 |
ENC-ADAP- MX 1 axis to veo 1 axis |
|
ADAP-002 |
ENC-ADAP- SX-MX2 1 axis to veo 1 axis |
|
ADAP-011 |
ENC-ADAP- veo 1 axis to MX 1 axis |
|
ADAP-012 |
ENC-ADAP- veo 1 axis to SX-MX2 1 axis |
|
WP2-ADAP-101 |
GPIO-ENC-ADAPT- veo to MX |
|
WP2-ADAP-102 |
GPIO-ENC-ADAPT- veo to SX-MX2 |
|
ADAP-015 |
ENC-ADAP- RS+ & RS2 to veo 1 axis |
|
PA Adapters |
Phased Array Adapters or Splitters |
|
ADAP-005 |
PA-Splitter- IX64 to IX32:32 |
|
ADAP-006 |
PA-Splitter- IX128 to IX64:64 |
|
ADAP-007 |
007 PA-Splitter- QX64 to Lemo00x8 |
|
ADAP-013 |
PA-Splitter- IX64 to BNCx32 |
|
ADAP-014 |
PA-Splitter- IX64 to BNCx64 |
|
ADAP-008 |
PA-ADAP- GZ64 to QX64 |
|
ADAP-009 |
PA-ADAP- CN64 to QX64 |
|
ADAP-010 |
PA-ADAP- QX64 to CN64 |
Downloads
| Date | Title | Version | Size | |
|---|---|---|---|---|
| April 2018 | PRISMA Software Updates | Download | ||
| April 2018 | UTStudio+ Analysis Software Updates | Download | ||
| April 2018 | UTview FREE Data Viewer Updates | Download | ||
| October 2018 | Xpair Remote Software | Download | ||
| October 2018 | UTmap Analysis Software Updates | Download | ||
| 01.01.2014 | MSDS Panasonic Li ion Cell for 242171 | 132.72 KB | Download | |
| 01.01.2013 | Shipping & Handling Li ion Batteries | 361.36 KB | Download | |
| 07.05.2014 | Li ion Battery PSDS | 212.04 KB | Download |
