Unleashing the Potential of Sonatest PA Probes for Precise Mapping
9th November 2023
Philippe Rioux
Sonatest
When it comes to mapping applications, the choice of phased array probes plays a crucial role in achieving accurate and comprehensive results. Sonatest offers a range of advanced phased array probe options tailored specifically for mapping purposes.
Within our solutions, a multitude of choices are available. Among our offering, two fundamental aspects will guide you in your selection process: precision and surface coverage, as shown in Figure 1. Each series of probes also has the benefit of an extensive range of frequencies, ensuring that specifications remain uncompromised.
Fig. 1 Interconnected Probe Options

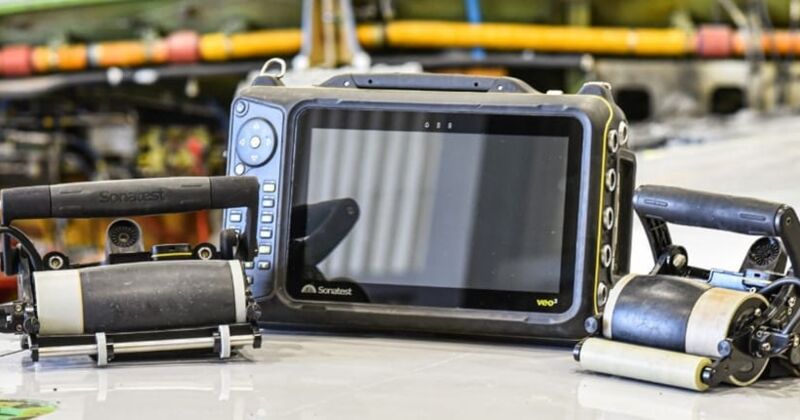

Fig. 2 Scrolling the scan area on our 2 WheelProbes E64 and E128
| Probe Models | Freq. (MHz) | Total Width (mm) | Scrolling C-scan Area (cm2) | Encoder-ready* | Applications, Part, Unique Feature |
|---|---|---|---|---|---|
| Single Elm. Wheelprobe | 1 to 10 | 15 | One B-scan line | Integrated | Provides the thickness profile along the encoder scan axis |
| D1B DLA | 2.25 to 7.5 | 25.6 | 32cm2; 5.0inch2 | AXYS | DW1B-2N0L DLA wedge; Pitch – Catch focusing, (FD length option) – Challenging Material Inspection |
| X3A | 2.25 to 10 | 38.4 | 48cm2; 7.4inch2 | AXYS | Unique X3AG WheelProbe Rubber Glider for composites; Precision 0-degree scans over quantity. A cable exit on its side is now an option. |
| WP2 E64 | 2 to 10 | 51.2 | 64.25cm2; 10.0inch2 | Integrated | General-purpose portable immersion wheel. |
| X6A | 3.5 to 5 | 96 | 120cm2; 18.6inch2 | AXYS | The most precise and widest 5 MHz probe we offer. |
| WP2 E128 | 2 to 10 | 102.4 | 128.5cm2; 19.9inch2 | Integrated | Dual-powered laser pointers for precise scan plan. Wide and precise mapping. |
| X6B | 0.5 to 1 | 128 | 160cm2; 24.8inch2 | AXYS | Self-irrigated probe and hydro-gliding technologies. IHC flat wedge or Hydro Glider must be selected. Lowest PA frequency in our catalogue. |
* Our L0-IHC wedges have 2 x 5 mm button drilled holes. They essentially work with Jireh STIX scanners or equivalent.
